Battery Station Project Plan v1.0

7.50

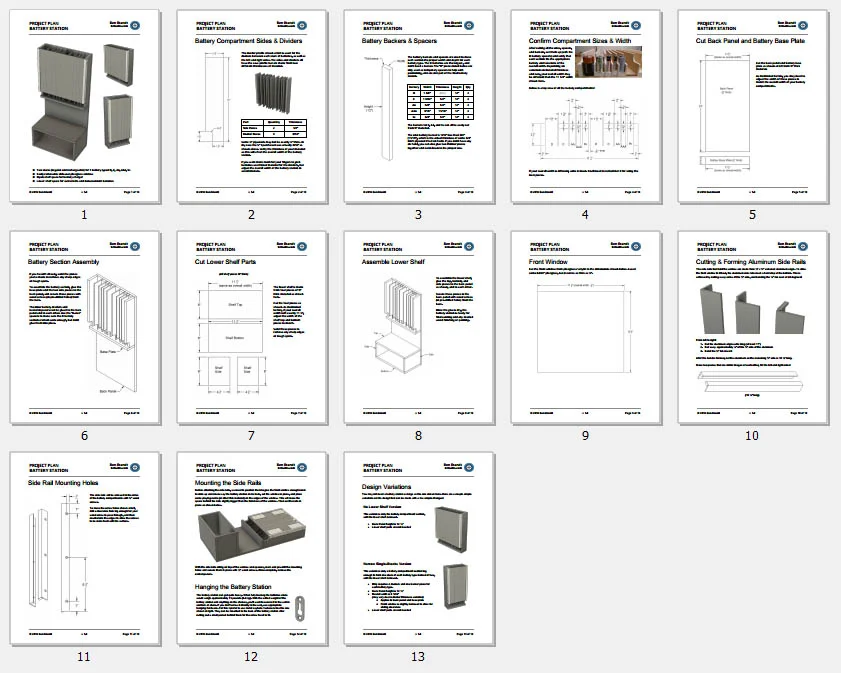

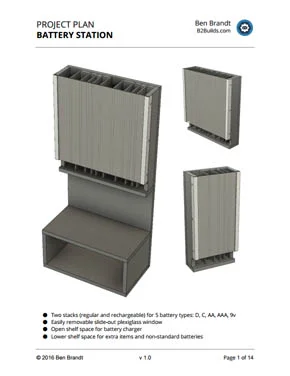

Based on my Battery Station project video, this 13-page PDF steps you through the build process with detailed instructions, dimensioned drawings, and 3D renderings of the project at every step. The final battery station holds two 12" tall stacks of five battery types (D, C, AA, AAA, 9v) and includes a lower shelf for a battery charger and extra battery-related items. All dimensions are provided in inches. Also includes information on two design variations for a non-shelf version and a smaller/narrower version.
